GU10 and GU5.3 are two different MR16 lamp bases. GU10 runs on 120V line voltage and uses a twist-and-lock base with two posts. GU5.3 runs on 12V low voltage through a transformer and uses two thin push-in pins. The bases are not interchangeable. Shop Soraa MR16 GU10 lamps.
Key Takeaways
- GU10 is line voltage (120V) and plugs straight into building power with no transformer.
- GU5.3 is low voltage (12V) and always needs a transformer or driver between it and the wall.
- Look at the base: two round posts with wider tips that twist and lock mean GU10; two straight thin pins that push in mean GU5.3.
- The two bases do not fit the same socket, so a GU5.3 lamp cannot replace a GU10 lamp or the reverse.
- Dimming behavior depends on the whole system, and low-voltage setups add the transformer as one more part to match.
- For a brand-new install, GU10 keeps the wiring simpler; for a retrofit, match whatever base the fixture already has.

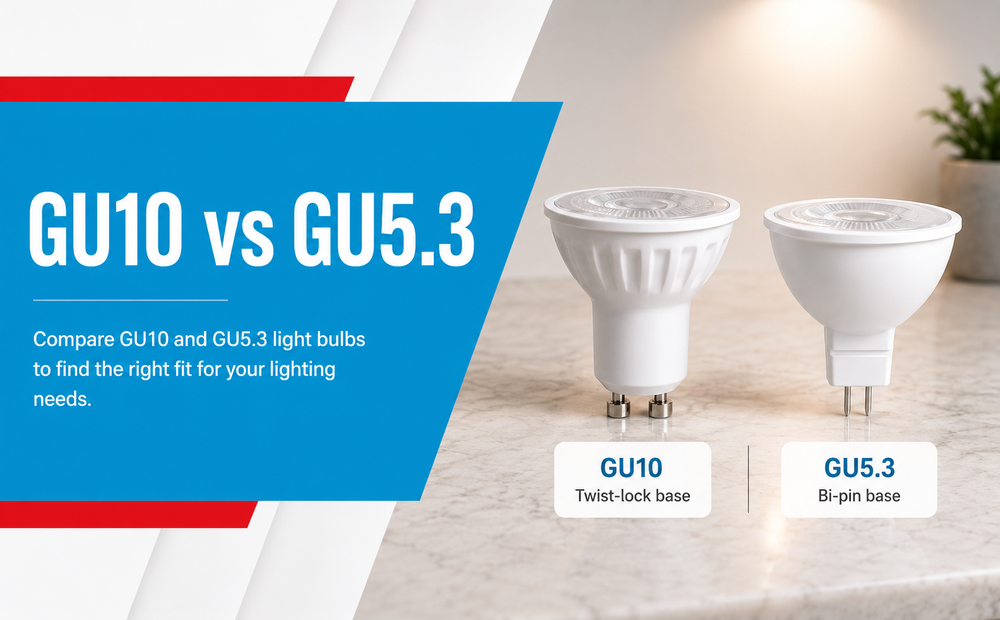

GU10 vs GU5.3: what actually differs
GU10 and GU5.3 look similar from the front because both are MR16 reflector lamps, usually about two inches across with a faceted or smooth reflector face. The difference sits at the back, in the base, and it determines how the lamp gets power. GU10 is a line-voltage base that runs on the same 120V that comes out of a US wall socket, so it wires in with no extra hardware. GU5.3 is a low-voltage base that runs on 12V, which means a transformer or LED driver has to sit between the lamp and building power. Pick the wrong one and the lamp either will not fit the socket or will not light safely. If you already know you need line voltage, you can browse Soraa MR16 GU10 lamps and skip the transformer question entirely.
The naming looks technical, but it maps to something you can see and measure. The number in each name refers to the spacing of the contacts on the base in millimeters. That small detail is why the two lamps cannot share a socket, and it is also the quickest way to sort one from the other once you know what to look for.
How to Identify GU10 vs GU5.3 at a Glance
Turn the lamp over and study the base. Use these signs to name it in a few seconds:
GU10: Two solid round posts that stick straight down, each with a slightly wider tip or flange. You push the lamp in and twist it a quarter turn to lock it. The contacts sit about 10 mm apart, which is where the 10 in the name comes from.
GU5.3: Two thin straight pins that look like small wires, spaced about 5.3 mm apart. You push them straight into matching holes in the socket, and they pull straight back out. No twisting is involved.
If you cannot see the lamp, check the fixture instead. A socket you twist and lock is GU10. A socket with two small round holes that the pins slide into is GU5.3. A visible transformer or a low-voltage label near the fixture also points to GU5.3.
GU10 vs GU5.3 Comparison Table
| Feature | GU10 | GU5.3 |
|---|---|---|
| Base type | Twist-and-lock, two round posts | Push-in, two thin straight pins |
| Voltage | 120V line voltage | 12V low voltage |
| Transformer or driver | Not needed; wires to mains | Required between lamp and power |
| Contact spacing | About 10 mm | About 5.3 mm |
| Dimming | Depends on the mains dimmer and lamp match | Depends on the transformer, driver, and dimmer together |
| How to identify | Push and twist a quarter turn to lock | Pins push straight in and pull straight out |
| Typical use | Retail, offices, newer track and downlights | Older display lighting, museums, existing 12V systems |
Voltage and Transformer Implications
The voltage split is the reason the two bases exist. GU10 lamps carry their own step-down electronics inside the lamp body, so they accept 120V and handle the conversion themselves. That keeps the fixture wiring simple: hot, neutral, ground, and a socket. Fewer parts means fewer things that can fail or mismatch.
GU5.3 lamps expect a steady 12V feed, which a transformer or LED driver has to supply. Older systems often use a magnetic transformer, while newer ones use an electronic transformer or a purpose-built LED driver. The type matters. Many older magnetic and electronic transformers were built for the high wattage of halogen lamps and have a minimum load they need to run correctly. An LED lamp draws far less power than the halogen it replaces, so it can fall under that minimum and cause flicker, buzzing, or a lamp that will not start. When you move a 12V system to LED, the transformer often needs review, and sometimes replacement, alongside the lamp. Our range of Soraa MR16 GU5.3 lamps lists the driver requirements on each product so you can match the parts before you buy.
This is also why swapping between the two bases is more than a socket problem. A GU5.3 lamp on raw 120V would be destroyed, and a GU10 lamp on a 12V transformer feed would not get enough voltage to run. The systems are built around different power, not just different plugs.
A Quick Note on Dimming
Dimming works differently across the two bases because the parts in the chain are different. A GU10 setup pairs the lamp with a mains dimmer, and smooth results depend on that pair being compatible. A GU5.3 setup adds the transformer or driver as a third piece that also has to play along, which gives you one more variable to match. Neither base is automatically better at dimming, but the low-voltage path has more moving parts. If dimming is central to your project, plan the lamp, dimmer, and driver together rather than one at a time. We cover the specifics of matching Soraa lamps to dimmers in a separate guide on Soraa dimmer compatibility.
Not sure which base is sitting in your fixture? Snap a photo of the lamp back and the socket, and our team can confirm GU10 or GU5.3 before you order so the lamp fits the first time.
Energy and Safety Notes
On energy, the base itself does not decide efficiency. A quality LED MR16 in either base uses far less power than the halogen version it replaces. What changes with GU5.3 is the transformer, which adds a small standby and conversion loss to the system. In a large install with many low-voltage fixtures, that added loss can add up, and it is one reason some new projects lean toward GU10.
On safety, GU10 carries line voltage right at the socket, so the fixture and wiring have to be rated for 120V and installed to code. GU5.3 keeps only 12V at the lamp, which some designers prefer for damp or reach-in locations, though the transformer still connects to line voltage upstream and must be installed correctly. Both are safe when wired and loaded as intended. Problems usually come from a mismatch, such as an LED lamp under a transformer's minimum load or a lamp forced into the wrong socket. When in doubt on any 120V connection, use a licensed electrician.
New Install vs Retrofit: Which Base to Choose
For a new install where you control the wiring, GU10 is usually the simpler path. You skip the transformer, you have fewer parts to source and match, and you cut one point of failure out of the system. That is why many new track and downlight products in the US ship with GU10 sockets.
For a retrofit, the rule is short: match the base the fixture already has. If the socket twists and locks, buy GU10. If it takes push-in pins and there is a transformer in the circuit, buy GU5.3 and check that the transformer suits an LED load. Do not try to change the base to switch systems unless you are prepared to rewire the fixture, because the socket, voltage, and transformer all have to agree. If you have a mix of both across a building, label each fixture as you service it so future orders stay correct. Converting an old halogen MR16 system to LED has its own steps, which we walk through in our halogen-to-LED MR16 guide.
Either way, the base is the first spec to lock down. Once GU10 or GU5.3 is settled, everything else - beam angle, color rendering, lumen output, dimming - follows from a lamp you know will physically fit and power on. From there, you can browse the full Soraa lamp range with confidence.
Frequently Asked Questions
Are GU10 and GU5.3 Interchangeable?
No. They use different bases, different socket types, and different voltages. GU10 runs on 120V line voltage with a twist-and-lock base, while GU5.3 runs on 12V low voltage with push-in pins. One cannot replace the other in the same fixture without rewiring.
Can I Put a GU5.3 Lamp in a GU10 Fixture?
No. The pins will not fit the twist-and-lock socket, and even if they did, the 120V feed would destroy a lamp built for 12V. Always match the lamp base to the socket and the voltage of the circuit.
Does GU10 Need a Transformer?
No. GU10 lamps run directly on 120V line voltage and handle the internal conversion themselves, so they wire straight into building power. Only GU5.3 low-voltage lamps need a transformer or LED driver.
How Do I Know if My Track Light Is GU10 or GU5.3?
Look at the socket. If you push the lamp in and twist a quarter turn to lock it, it is GU10. If the lamp has two thin pins that slide straight into small holes, it is GU5.3. A transformer near the fixture also signals GU5.3.
Is GU10 or GU5.3 Better?
Neither is better overall. GU10 is simpler for new installs because it skips the transformer. GU5.3 makes sense when you are matching an existing 12V system. The right choice depends on your fixture and wiring, not on the base alone.
